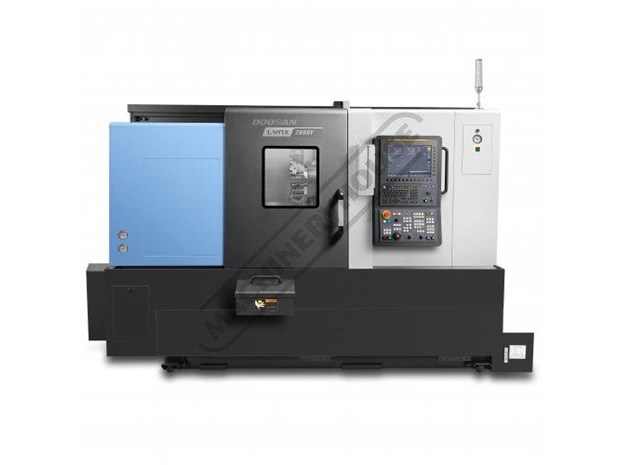

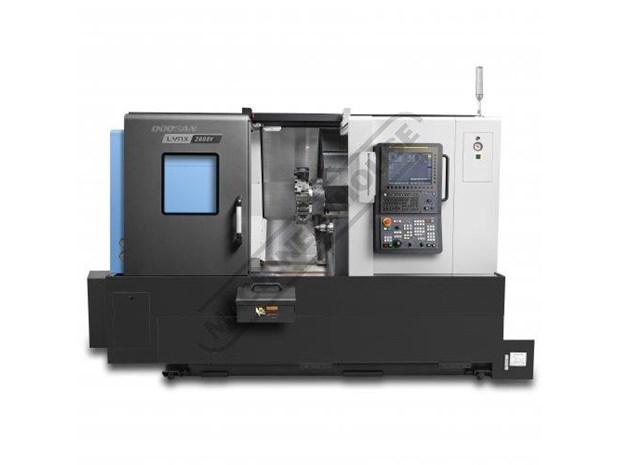

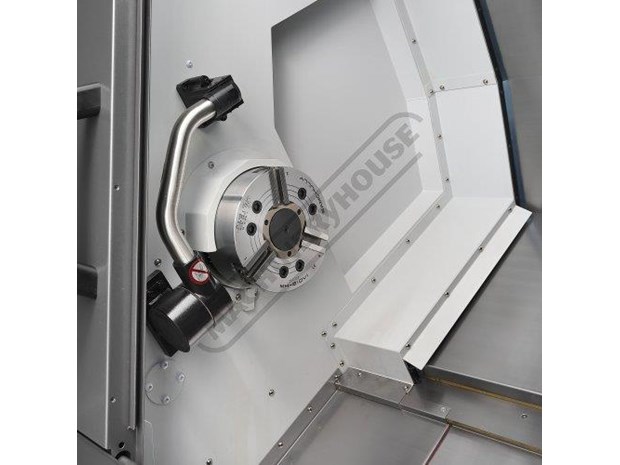

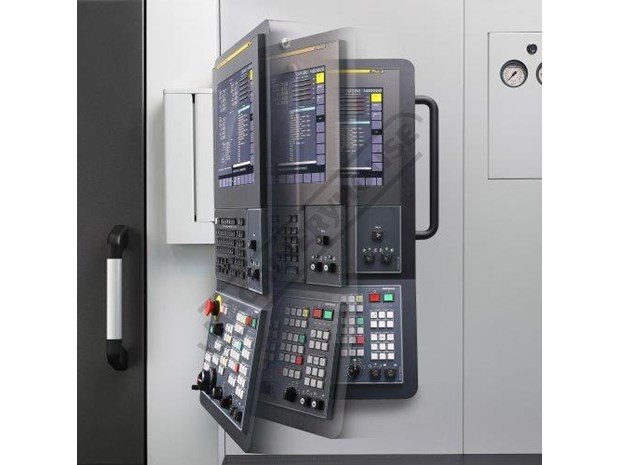

LYNX 2600Y CNC Turning Centre Doosan Fanuc I Series (0iPlus) CNC Controller DOOSAN MACHINE TOOLS LYNX 2600Y CNC Turning Centre Doosan Fanuc I Series (0iPlus) CNC Controller CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: L7081 Basic Specifications 630mm Swing Over Bed 460mm Swing Over Saddle 610mm Turning Length 380mm Turning ?? 105mm (??52.5mm) Y Axis Travel 360deg (0.001deg Resolution) C Axis 260kg Main Spindle Capacity, 520kg Shaft Work Capacity Features: Main Spindle 81mm Bar Capacity 250mm ?? Hydraulic Chuck 3500RPM Spindle Speed 18.5kW Spindle Power 403Nm Spindle Torque Tailstock 700mm Travel Hydraulic Programmable Positioning Turret BMT 55 Tool Mounting 5000RPM Live Tool Speed 5.5kW Live Tool Power 42Nm Live Tool Torque 24 Position / 12 Station Turret 25mm Square / 40mm ?? Tool Capacity ER25 Live Tool Collet Size Eppinger PreciFlex Tooling System CNC Control Doosan Fanuc I Series (0iPlus) CNC Controller 15`` Colour LCD Monitor Rigidsynchronised tapping Custom Macro B Ethernet Interface RS232 Interface USB & PCMCIA Memory Card Slot Doosan Ezi Guide ``I`` Conversational software: Graphical Turning Cycles Graphical Milling Cycles Full 3D Graphical Simulation Onboard G & M code assistance + more Standard Equipment Included 3 Jaw Hydraulic Power Chuck Grease Cartridge Auto Lubrication System Chuck Cleaning Air Blast Eppinger rotary tool holders with PreciFlex adapter set Coolant supply equipment Foot switches Transformer Full enclosure chip and coolant shield with front door interlock Hand tool kit Automatic lubrication equipment Comprehensive manuals incorporating Operation Maintenance Programming Spare Parts Diagrams Hydraulic Schematics Electrical Schematics and Ladder Diagrams. Safety name plates / tags where required Risk assessment Work light Includes: - Standard Turret Tool Holder Package Included - 4 x OD Tool Holder - 3 x ID Tool Holder - 1 x Face Tool Holder - 1 x U Drill Cap - 2 x Straight Milling Unit - 2 x Angular Milling Unit - 1 x Boring Sleeve Kit - 1 x U Drill Sleeve Kit - 1 x PreciFlex Adapter Kit - 1 x ER 25 Milling Collet Set - 1 x Hard & Soft Jaws - - Local Service and Support - Commissioning & Testing Included - Comprehensive Operator Training Included - Hare and Forbes In House Service And Applications Staff - Ongoing Support For Life Of The Machine - - Optional Equipment Included - Chuck open close confirmation proximity switches - Chip Conveyor (Side Discharge Hinged Belt) - Auto Tool Setter (Hydraulically operated) - 7 Bar High Pressure Coolant - Barfeed Interface - Programmable Tailstock - Chuck Cleaning Air Blast - Auto Power Off Function - - - Doosan Machine Tools changes its name to DN Solutions - Read more at: Specifications: ORDER CODE: L7081 MODEL: LYNX 2600Y Swing (mm): 630 Max Turning Diameter (mm): 380 Turning Length (mm): 610 Chuck Diameter (mm): 225 Bar Diameter Capacity (mm): 81 Tool Stations (No.): 12/24 Spindle Speed (rpm): 3500 Spindle Motor (kW): 18.5 Guideways: LMG Control: Doosan Fanuc I Series (0i-Plus) Programming: EZI Guide I Conversational C Axes Resolution (deg): 0.001 Milling Speed (rpm): 5000 Milling Collets: ER25 Sub Chuck Diameter (mm): ~ Y Axis Travel (mm): 105 (??52.5) To Purchase Online Please Visit The Machineryhouse Website & Search For 'L7081' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
