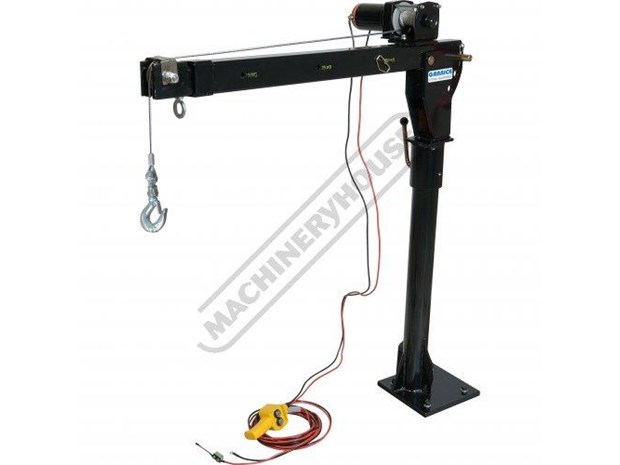

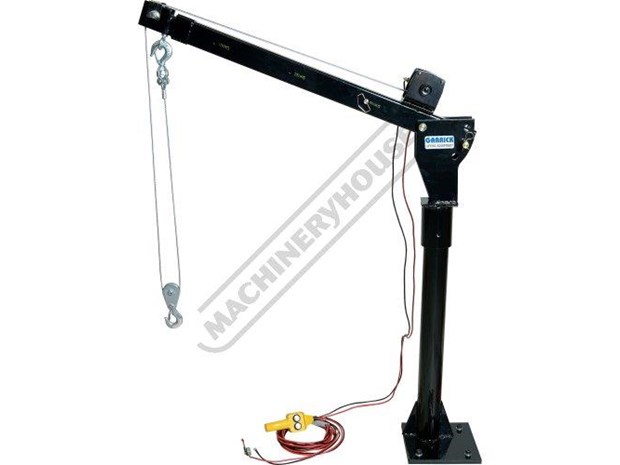

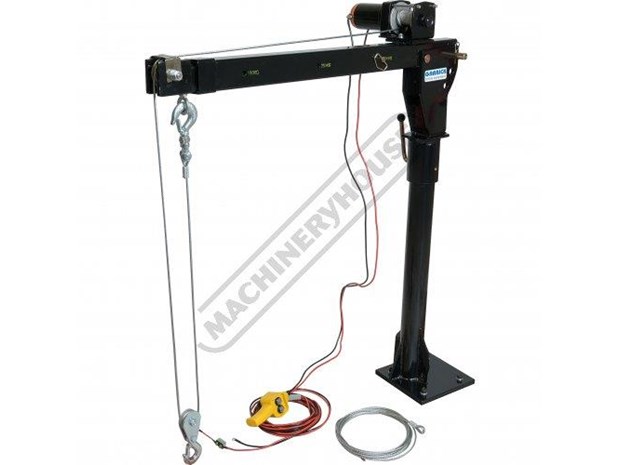

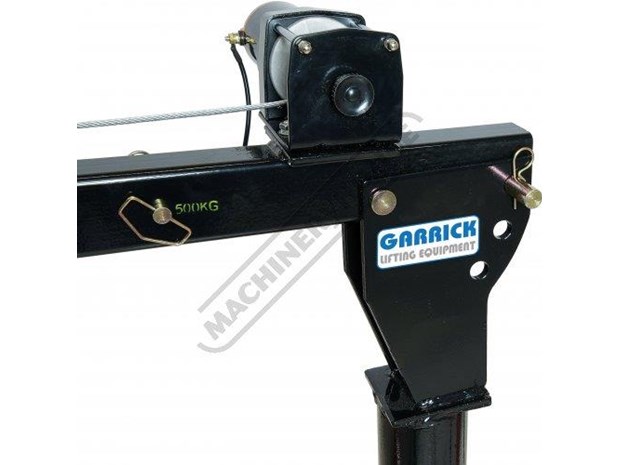

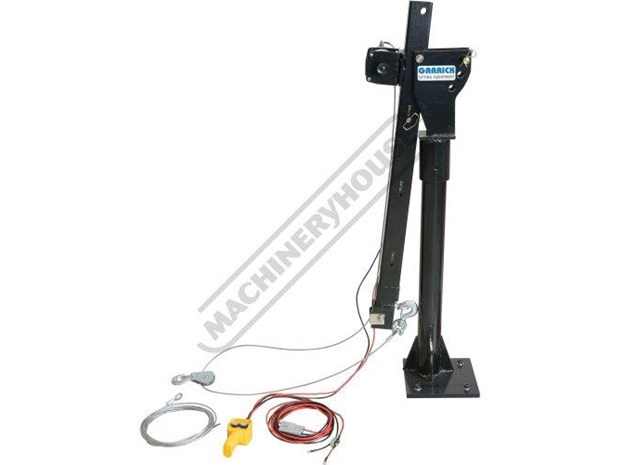

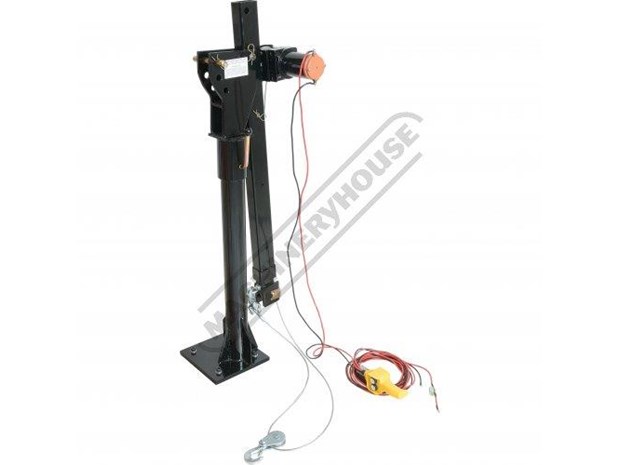

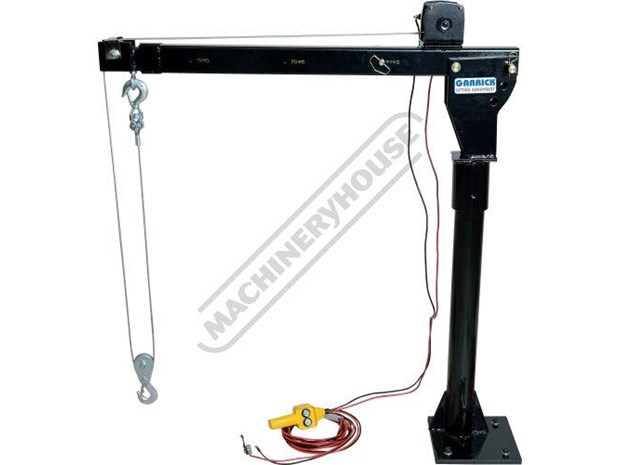

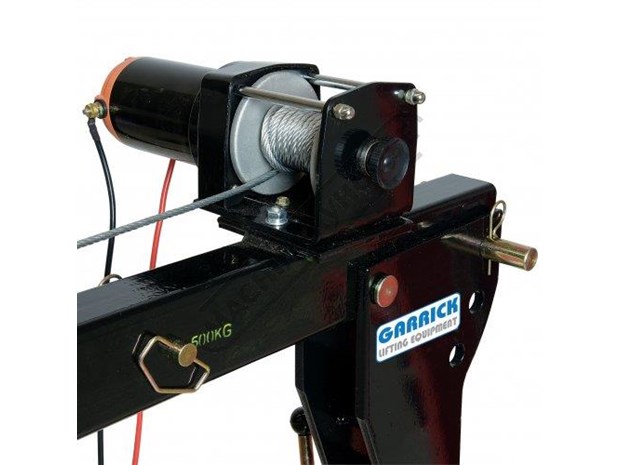

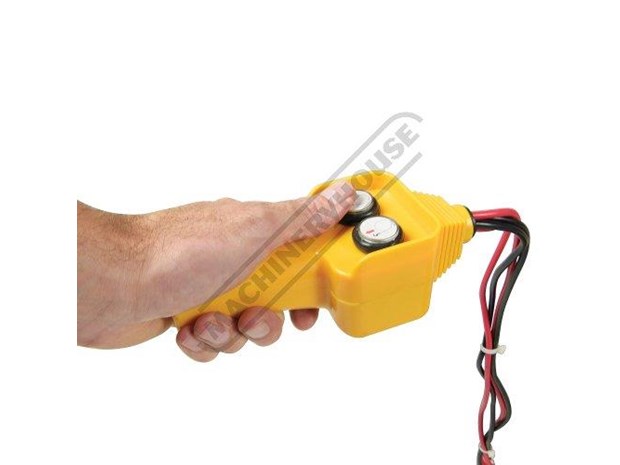

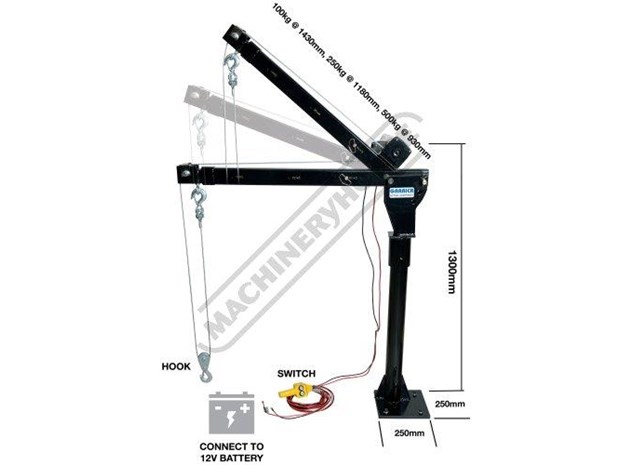

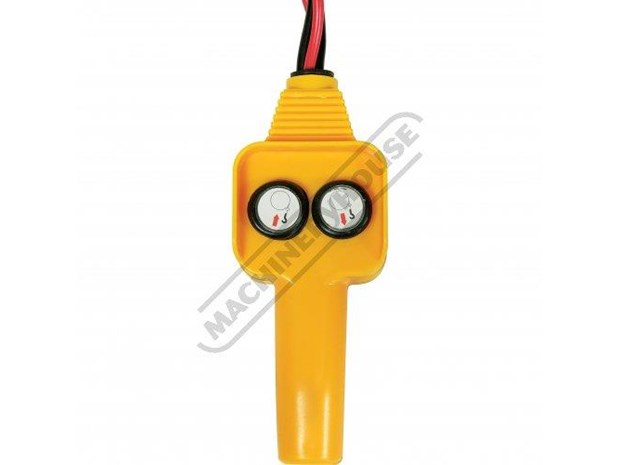

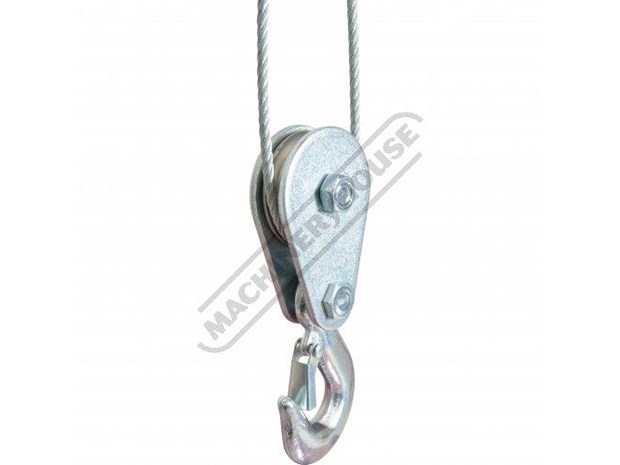

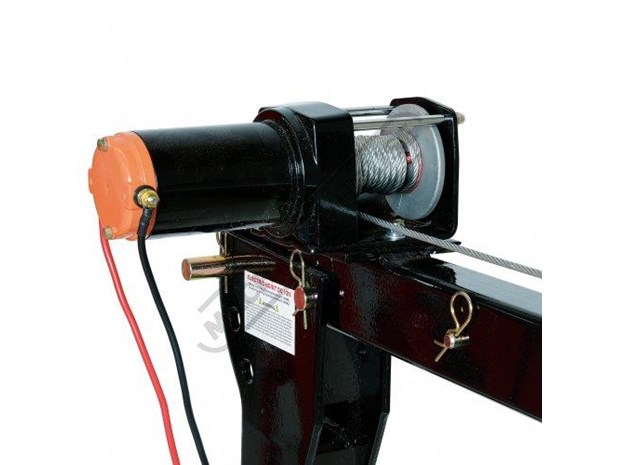

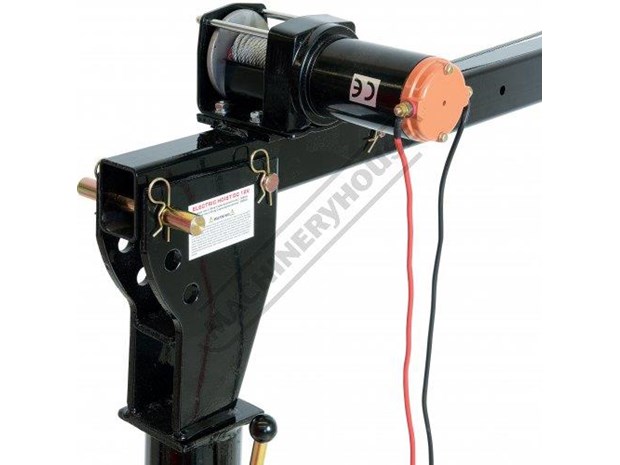

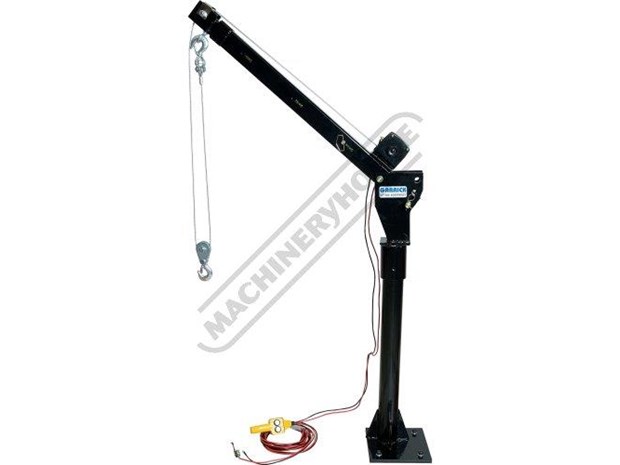

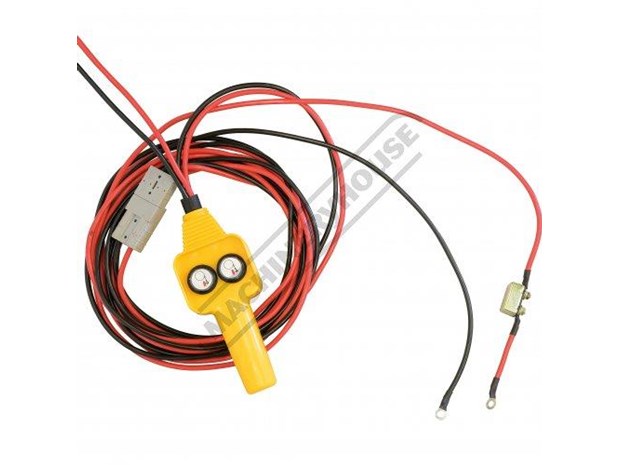

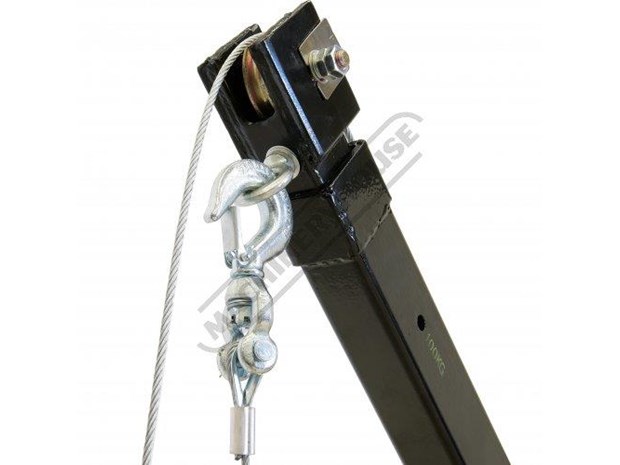

UTECRANE500 Swivel Crane - Truck or Ute *800kg Lifting Capacity 12V - DC Lifting Winch GARRICK LIFTING UTECRANE500 Swivel Crane - Truck or Ute *800kg Lifting Capacity 12V - DC Lifting Winch CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: A356 The CR500EL utility crane is lightweight, portable & compact design for mounting onto ute's, service bodies, vans, trucks, loading docks, platforms for lifting goods on and off up to 500kg with a single line lift via the powerful 12 volt DC winch. Features: *800kg capacity when set up with double line lifting 500kg capacity when set up with single line lifting 3 position telescoping boom : 500kg @ 930mm 250kg @ 1180mm 100kg @ 1430mm when set up with single line lifting Lifting electric winch: 12V DC 125amps 3 boom elevation angles: 3?? 20?? 40?? raised manually 3.6m/min speed with no load & single line lift 360?? continuous manual rotation of sealed thrust bearing Storage height folded (from base): 1300mm Lifting height (Base to hook): 1940mm 250 x 250 x 16mm mounting base plate with 170 x 170mm bolt holes centres Hand control with 4.2 metre cable Rotation hand lock Complies with Australian Standard AS1418.2 Supplied with test certificate Specifications: Order Code: A356 MODEL: UTECRANE500 Single Line Lifting Capacity (kg): 500 Double Line Lifting Capacity (kg): 800 Lifting System (Type): Electric Winch Power Supply (V): 12 Lift Capacity Pin Locations: 500, 250 & 100 Vertical Support (mm): ??86 Extension Arm Support (mm): 75 x 50 Hydraulic Ram (Tonne): ~ Overall Height - Lowest Position (mm): 1300 Nett Weight (kg): 64 To Purchase Online Please Visit The Machineryhouse Website & Search For 'A356' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
