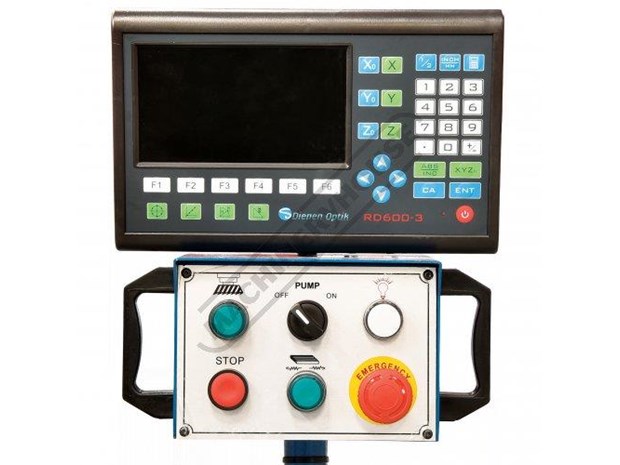

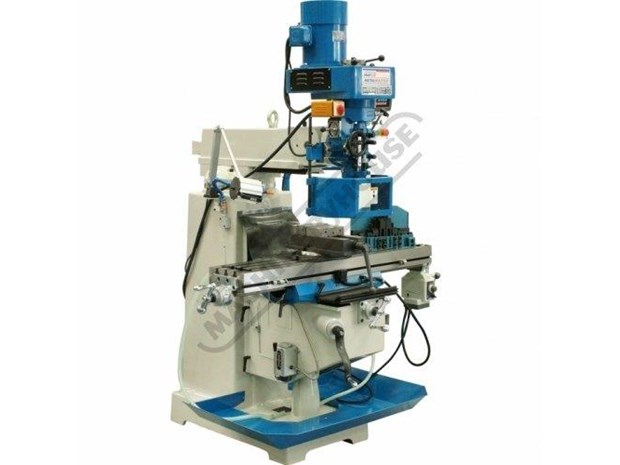

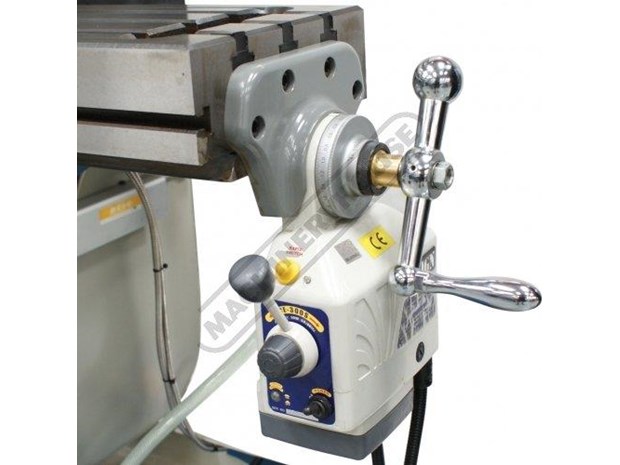

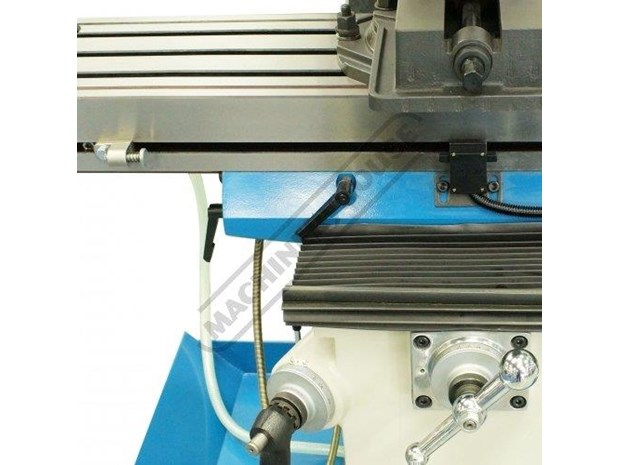

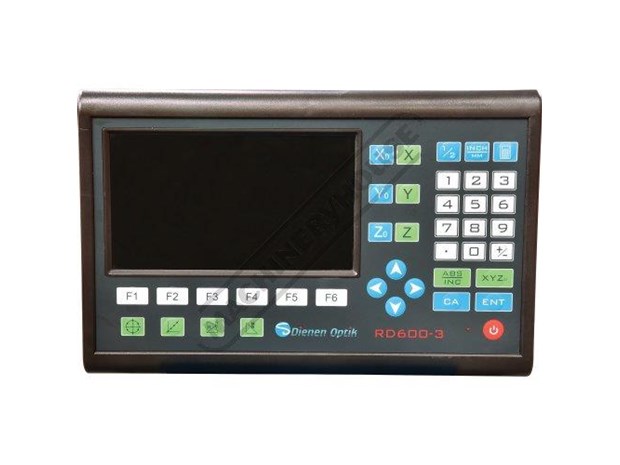

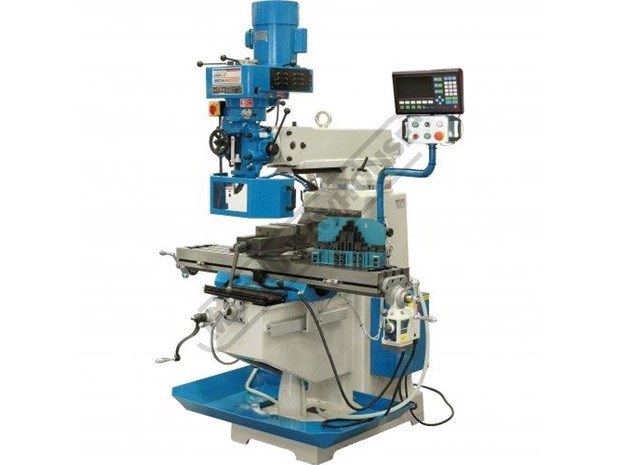

BM-30A Industrial Turret Milling Machine Table Travel: (X) - 760mm (Y) - 360mm (Z) - 430mm Includes HAFCO-METALMASTER BM-30A Industrial Turret Milling Machine Table Travel: (X) - 760mm (Y) - 360mm (Z) - 430mm Includes Digital Readout System, Vice & Clamp Kit CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: M603D The BM-30A Industrial turret milling machine is manufactured in Taiwan to a strict precision engineering ultra-high tolerance & superior excellence to cope with many jobs set out by the professional machinist and importantly to deliver many years of valuable & reliable service. This small but robust milling machine package is complete with a few of the most desirable features like, turcite B coated X & Y slide-ways that reduces friction to provide smooth table movement even when loaded up with a heavy job, hardened & ground work table & slide-ways, X-axis auto power-feed with adjustable feed stops, 3-axis digital readout counter plus X & Y scales fitted and also includes a machine vice & clamp kit set to get you started. Another reliable feature in this range of precision milling machines is the manufacturing process of the main body & supports, it is made up form the highest quality Meehanite?? cast iron. The key to the undisputed success of Meehanite?? metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance. To conclude this BM-30A turret milling machine may be small in structure but holds its own when put to the test to perform its duties to produce quality precise parts. Features: 3-Axis digital readout counter fitted with 2-Axis X & Y scales only 3HP 240V motor 8-speeds V-belt drive system NT30 Spindle taper with a chrome & ground quill Hardened & ground work table & slide-ways Turcite B coated X & Y-Axis slide-ways reduces friction for smooth operation All slides utilise dovetail construction for maximum rigidity Meehanite casting for high strength & minimal deformation Quality electrics & overload protection in an easy access enclosure Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle The ram incorporates a tail lug (spigot) to accept a slotting attachment etc. High / neutral and low gear selection lever to maximise torque Align CE-300S X-Axis power-feed with adjustable micro switch feed stops Metric dial graduations @ 0.02mm for X Y & Z-Axis Automatic quill feed 0.015 0.04 0.08mm/rev Automatic cut off depth stop on quill Oil lubrication pump and reservoir Slideway covers Y & Z-Axis Mill head tilts to ??45?? forward and back Mill head tilts to ??90?? left and right Manual quick action quill lever Mechanical spindle brake Tool box and manual Includes: - 3-Axis digital readout counter fitted with 2-Axis X & Y scales only - One-shot oil lubrication pump and reservoir - Drawbar M12 thread - Coolant system - Slideway covers - X-Axis power-feed - Halogen light - Machine vice (150mm) - Clamp kit - Safety cutter guard - Swarf tray Specifications: ORDER CODE: M603D MODEL: BM-30A Digital Readout: 3-Axis Counter, X, Y Scales Type: Vertical Table Size (mm): 1270 x 254 Column Type: ~ Spindle Taper - Vertical: NT30 Spindle Taper - Horizontal: ~ Longitudinal Travel (X-Axis) (mm): 760 Cross Travel (Y-Axis) (mm): 360 Vertical Travel (Z-Axis) (mm): 430 Type of Slides: Dovetail Ram Travel (mm): 520 Spindle to Table (mm): 505 Spindle to Base: ~ Spindle Travel / Diameter (mm): 127 / 86 Throat Depth (max.) (mm): 740 Tilting Head (Left ~ Right): ??90?? Tilting Head (Forward ~ Back): ??45?? Drilling Capacity (mm): ~ End Milling Capacity (mm): ~ Face Milling Capacity (mm): ~ Power Feed - Quill (mm/rev): 0.015 / 0.04 / 0.08 Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000 Power Feed - Cross (Y-Axis) (mm/min): Optional Power Feed - Vertical (Z-Axis) (mm/min): Optional Table T-Slot Size (inch / mm): 5/8 Work Table Load Capacity (kg): 250 Spindle Speeds Vertical (No./ rpm): 8 (80 - 2720) Spindle Speeds Horizontal (No./ rpm): ~ Spindle Speeds - Universal Head: ~ Motor Power - Vertical Spindle (kW / hp): 2.2 / 3 Motor Power - Horizontal Spindle (kW / hp): ~ Motor Power - Universal Head: ~ Voltage / Amperage (V / amp): 240 / 20 Nett Weight (kg): 1100 To Purchase Online Please Visit The Machineryhouse Website & Search For 'M603D' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
