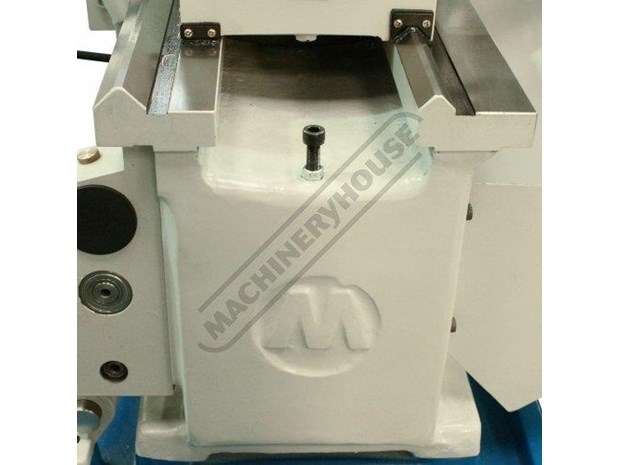

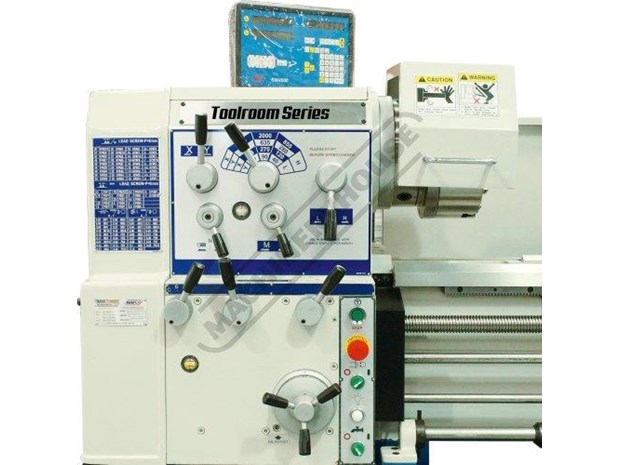

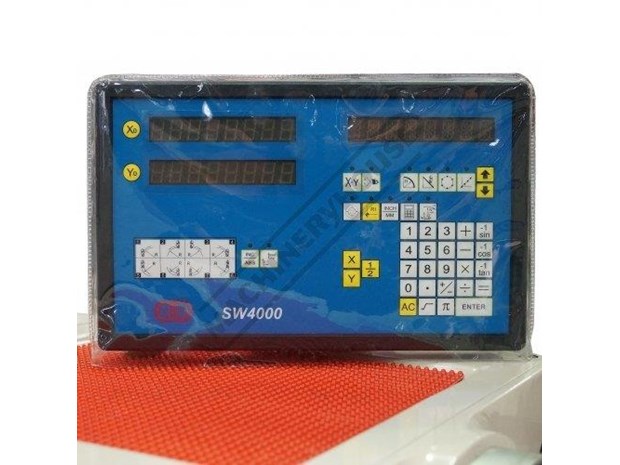

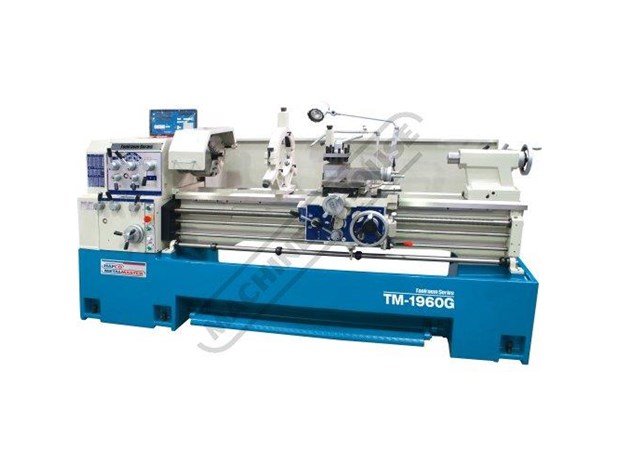

TM-1960G Centre Lathe ??480 x 1500mm Turning Capacity - ??80mm Spindle Bore Includes Digital Readout S HAFCO-METALMASTER TM-1960G Centre Lathe ??480 x 1500mm Turning Capacity - ??80mm Spindle Bore Includes Digital Readout System CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: L634D The TM-1960G Industrial quality centre lathe is manufactured in Taiwan to a stringent precision engineering high tolerance & superior excellence to cope with any job or task its set out to achieve by the professional machinist, and importantly to deliver many years of valuable & reliable service. One of the most forgotten & important feature in a quality lathe is the spindle bore support bearings & generally not mentioned or overlooked because they are hidden well within the headstock of the lathe. Not in this case as the TM-1960G is equipped with 3 x German quality SKF bearings offering excellent spindle support to handle extreme cutting loads to produce accurate work. Another reliable feature in this range of precision lathes is the manufacturing process of the bed-ways, it is made up form the highest quality Meehanite?? cast iron. The key to the undisputed success of Meehanite?? metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance. This lathe package is complete with the most desirable features required to turn out quality precise parts we all require from a metal turning lathe. Features: 2 Axis digital readout system Triple SKF German made bearings supporting headstock spindle Adjustable taper roller bearings providing spindle accuracy Precision 'V'-beds & headstock gears are all hardened & ground High quality one-piece Meehanite cast base increases rigidity Overload protection on drive motor and coolant system Universal enclosed gearbox incorporating metric & imperial thread capabilities Inching button incorporated on the control panel for convenient spindle speed selection Foot operated spindle brake with safety cut out switch 300mm wide induction hardened heavy duty cast iron bed Removable gap bed allowing work piece to swing up to 650mm Powered longitudinal and cross feeds Adjustable 4 position length-stop mechanism for accurate repetitive operation Dual calibrated dials incorporating metric & imperial graduations Coolant system with flexible hose enabling operator to manipulate flow direction Oil sight glass for head stock gearbox and apron Low voltage halogen work light Lubrication pump on saddle oiling slides D1-8 camlock spindle for quick chuck removal 12 Spindle speeds from 40 - 2000rpm Large 80mm spindle bore 5.5kW / 7.5HP 415V main motor Includes: - 2 Axis digital readout system - 275mm 3-jaw chuck with reverse jaws - 320mm 4-jaw chuck - 356mm face plate - Fixed steady with roller bearings - Travelling steady with roller bearings - 4-position knock out feed system - Dead centres - Thread chasing dial - Foot brake - Coolant system - Work light - Rear splash guard - Spindle reducing bush - Instruction booklet Specifications: ORDER CODE: L634D MODEL: TM-1960G Swing Over Bed (mm): 480 Distance Between Centres (mm): 1500 Spindle Bore (mm): 80 Swing In Gap (mm): 690 Swing Over Cross-slide (mm): 275 Digital Readout System Fitted: Yes Quick Change Toolpost Fitted: Optional Leadscrew Covers Fitted: ~ Taper Turning Attachment: Optional Coolant System: Yes Tool Height To Suit (mm): 25 Centre Height (mm): 240 Spindle Nose Size or Type: D1-8 Camlock Bed Width (mm): 300 Headstock Spindle Taper (MT): 7 Tailstock Taper (MT): 4 Cross Slide Travel (mm): 250 Compound Slide Travel (mm): 125 Leadscrew Type: Metric Metric Cross Feed (X-Axis) (mm/rev): 0.02 - 0.4 Imperial Cross Feed (X-Axis) (inch/rev): ~ Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.05 - 0.82 Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~ Metric Thread Steps & Pitch (No. / mm): 17 (0.5 - 7) Imperial Thread Steps & TPI (No. / TPI): 39 (4 - 56) 3 Jaw Chuck Diameter (mm): 275 4 Jaw Chuck Diameter (mm): 320 Spindle Steps / Speeds (No. / rpm): 12 (40 - 2000) Motor Power (kW / hp): 5.5 / 7.5 Voltage / Amperage (V / amp): 415 Nett Weight (kg): 2250 To Purchase Online Please Visit The Machineryhouse Website & Search For 'L634D' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
