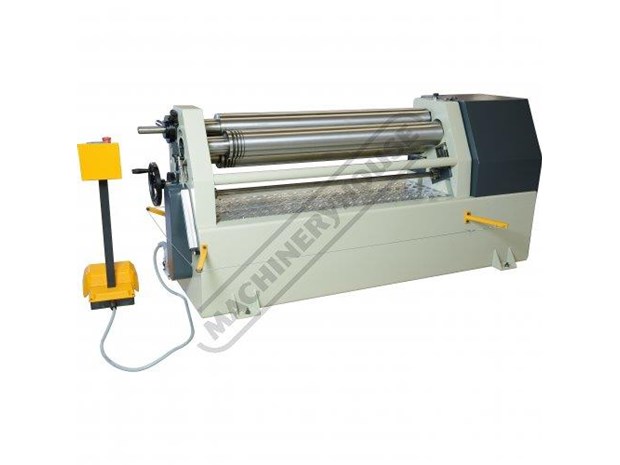

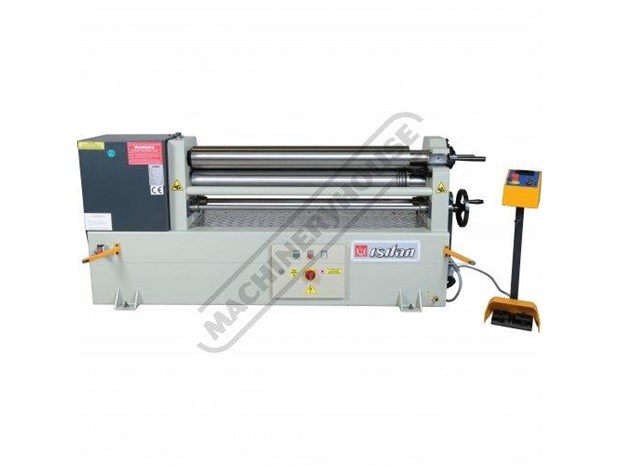

IRM1270x140 Motorised Plate Curving Rolls 1270 x 5mm Mild Steel Capacity Hardened Rolls, Motorised U

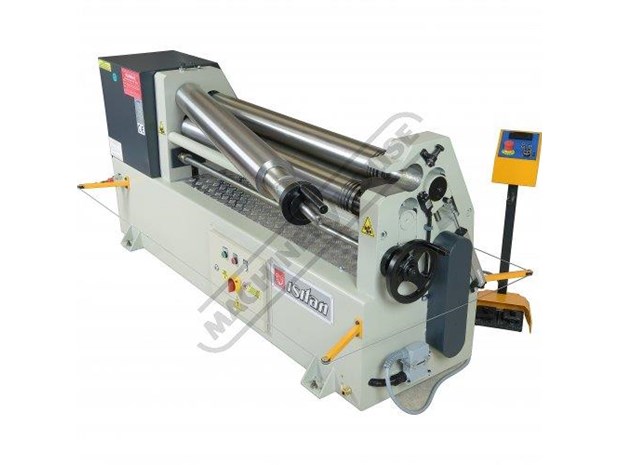

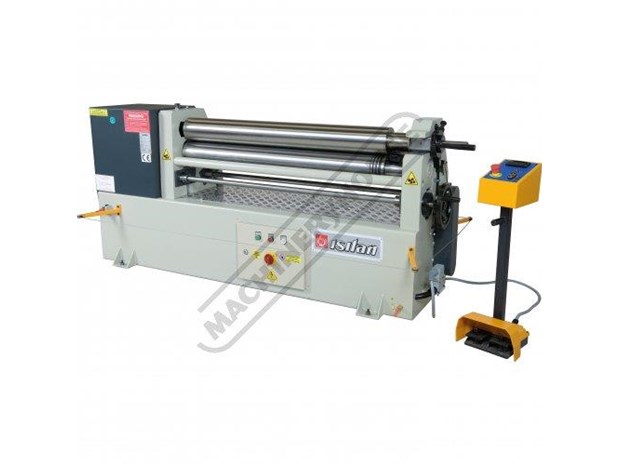

ISITAN IRM1270x140 Motorised Plate Curving Rolls 1270 x 5mm Mild Steel Capacity Hardened Rolls, Motorised Up/Down Rear Roll, DRO Control Panel & Initial Pinch Design
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S785

Features:
SAE 1050 (CK45) certificated forged steel rolls with high tensile strength

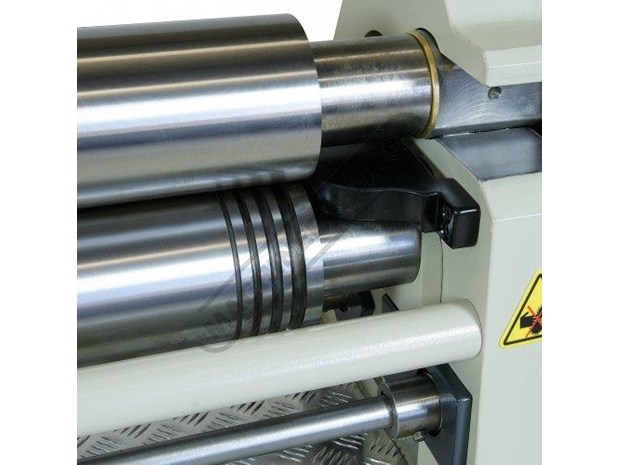

Precision hardened rolls wire wire grooves also suitable for stainless steel

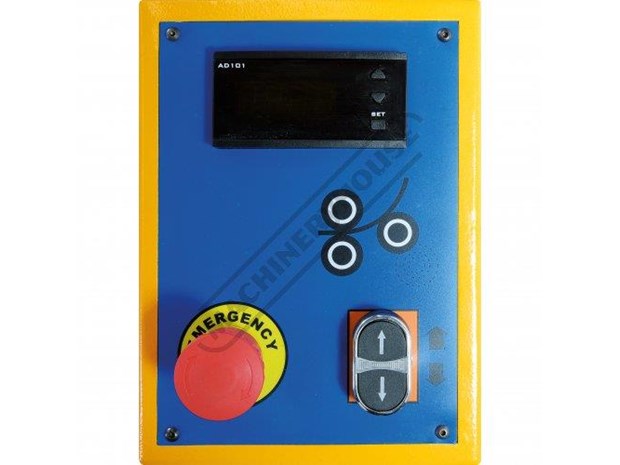

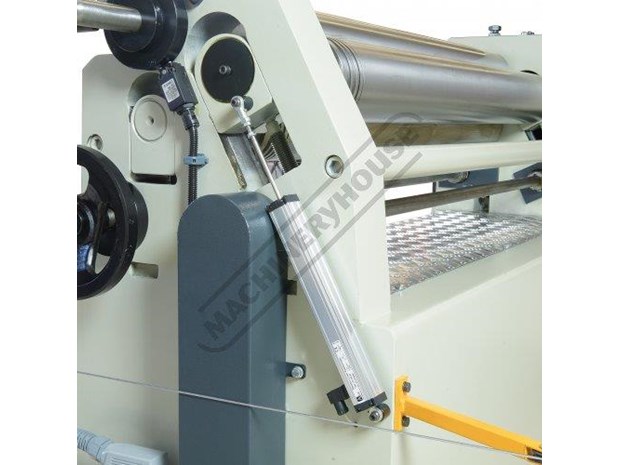

Motorised rear bending roller with digital readout display for positioning
Heavy cast iron construction at each end frames providing stability and rigidity

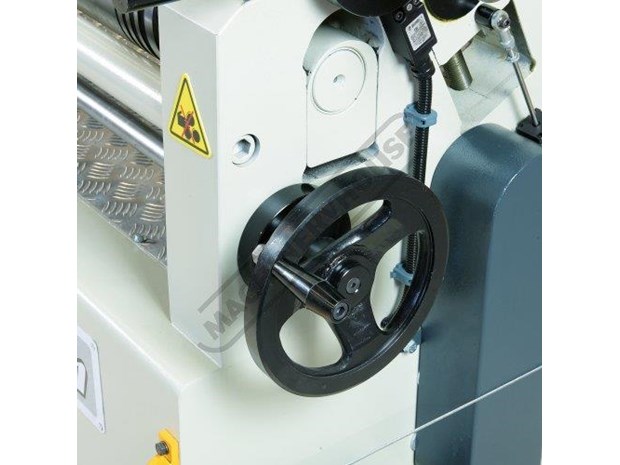

Single handle adjustment of bottom rolls to suit material thickness

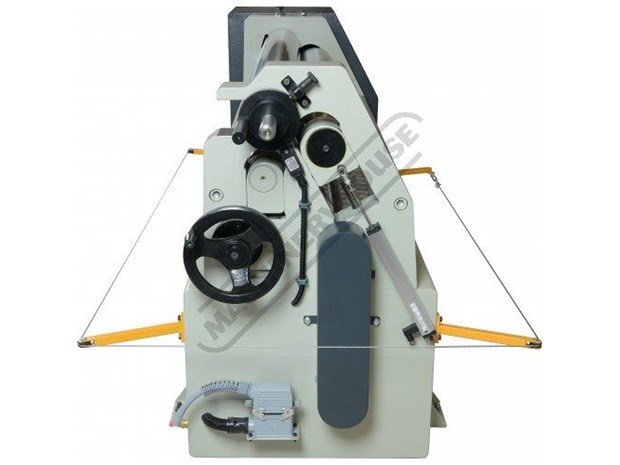

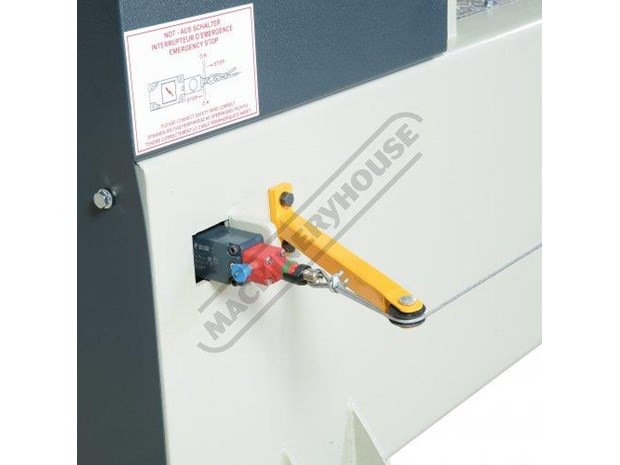

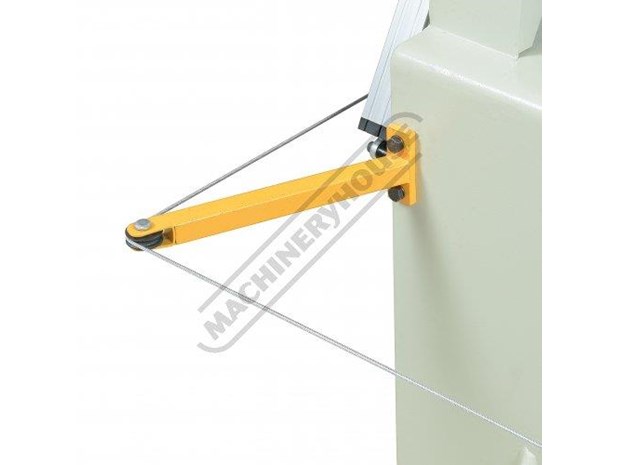

Safety trip wire (RM & IRM) or kick bar (IR) standard
Brake motor standard for precision bending

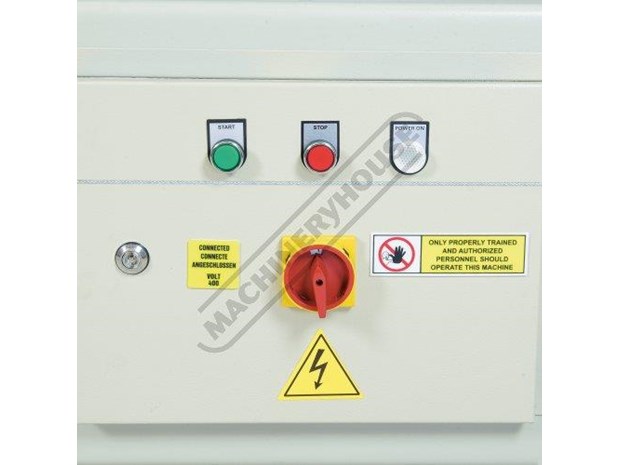

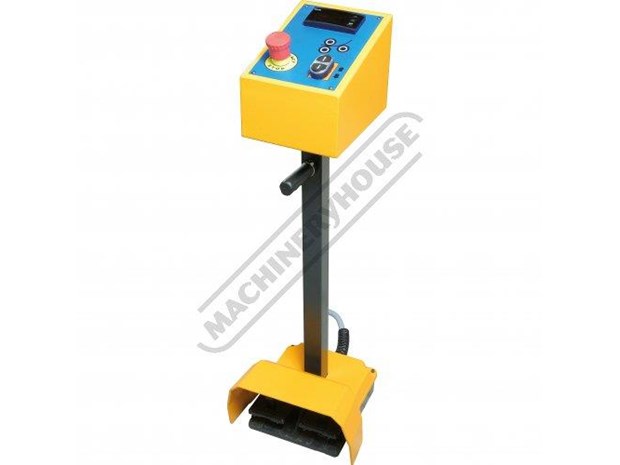

Mobile control panel with emergency stop

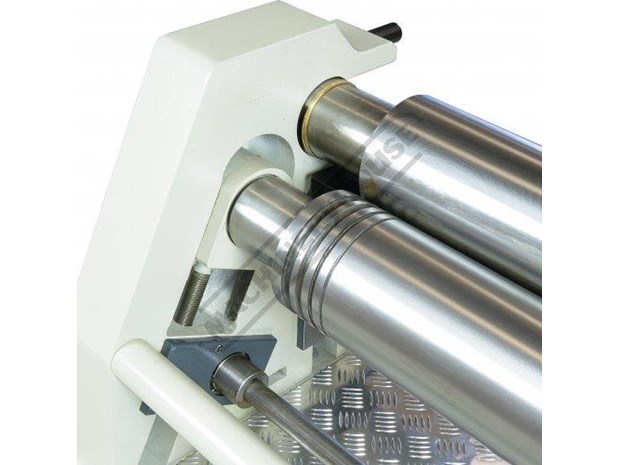

Conical bending device
Made in Turkey

Mild steel capacity is rated on hot rolled material with 250MPA

Includes:
- Standard manual drop end



Specifications:
ORDER CODE: S785
MODEL: IRM1270x140
Curving System Type: Initial Pinch
Curving Material Length (mm): 1270
Curving Plate Thickness - Mild Steel (mm): 5
Minimum Rolling Diameter (mm): 210
Roll Diameter (mm): 140
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 415
Dimensions (LxWxH) (mm): 2470 x 750 x 1000
Floor Space (L x W x H) (mm): ~
Nett Weight (kg): 1350
