10-1392 Screw Thread Micrometers 75-100mm Metric

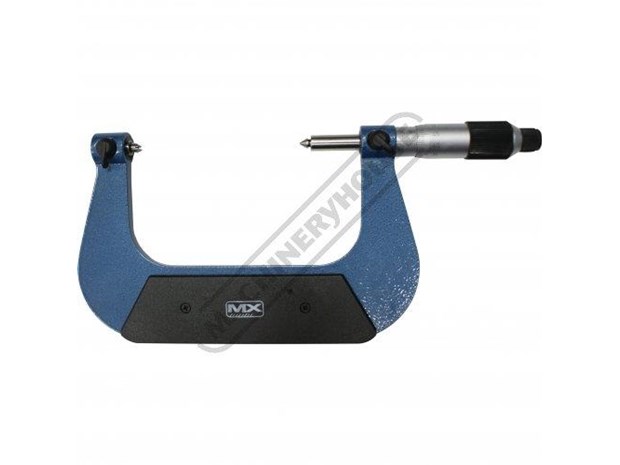

MEASUMAX 10-1392 Screw Thread Micrometers 75-100mm Metric
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q1392

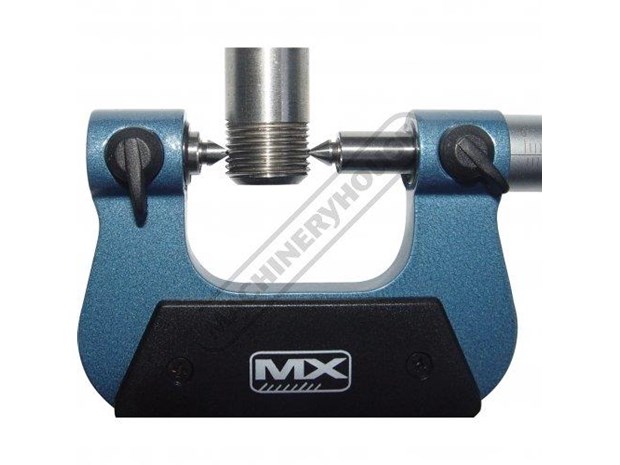

Measumax Screw Thread micrometers are suitable for measuring pitch diameters of Metric, Whitworth and Unified screw threads.

Features:

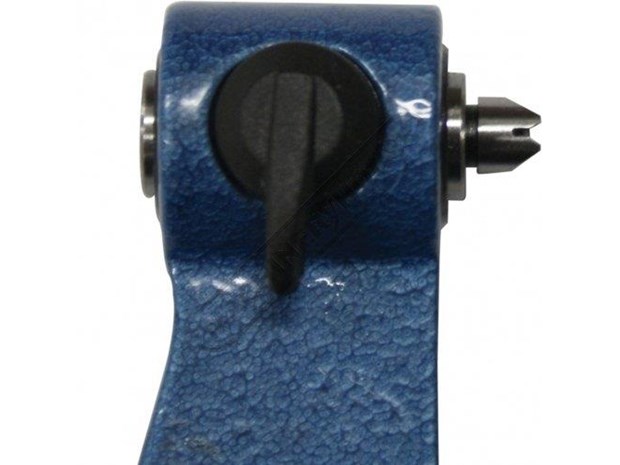

V-shaped and cone-shaped anvils (interchangeable) are supplied. Dimensions of anvil-tail: ??5x15mm

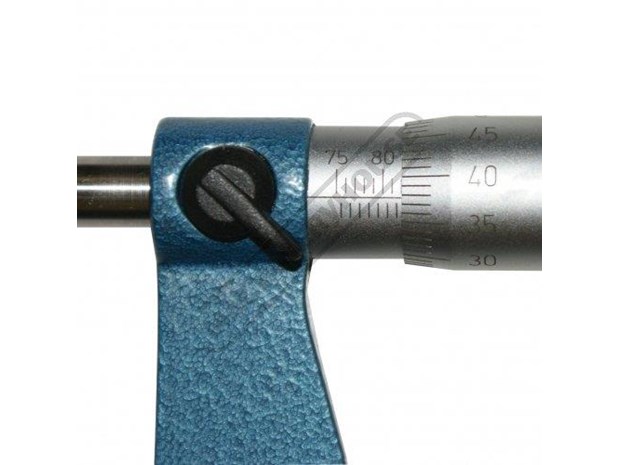

Ratchet friction thimble
Painted frame rotating spindle
Resolution: 0.01mm/0.0001``

Includes:
- Includes 60?? Anvils
- F0102 0.6-0.9mm pitch
- F0103 1-1.75mm pitch
- F0104 2-3mm pitch
- F0105 3.5-5mm pitch
- F0106 5.5-7mm pitch



Specifications:
ORDER CODE: Q1392
Measuring Units: Metric
Range (mm / inch): 75 - 100mm
Graduation (mm): 0.01
Accuracy (mm): ??0.005
C (mm): 62
L (mm): 118
Anvils Supplied: F0102 - F0106 (60?? )


To Purchase Online Please Visit The Machineryhouse Website & Search For 'Q1392'
