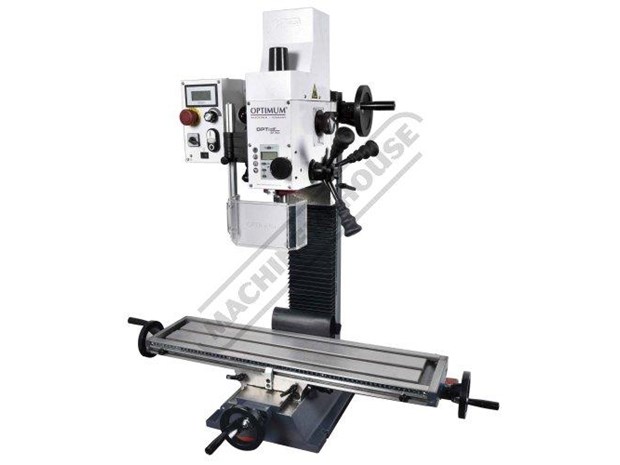

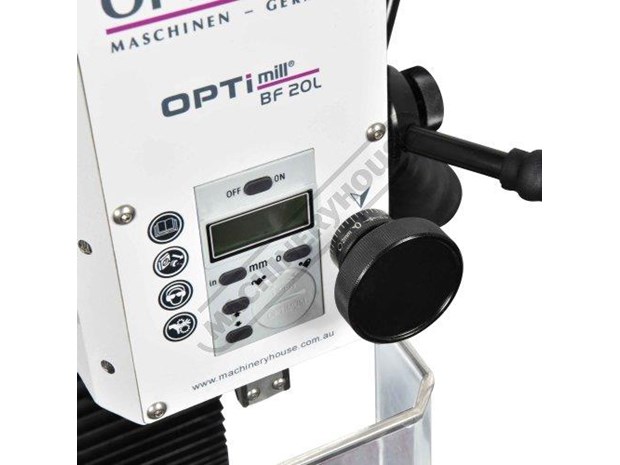

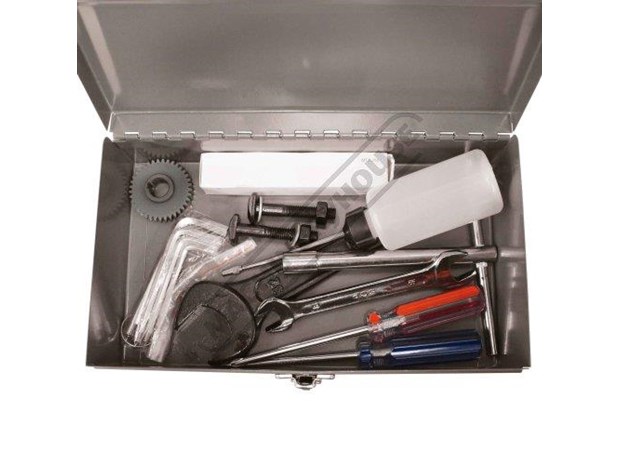

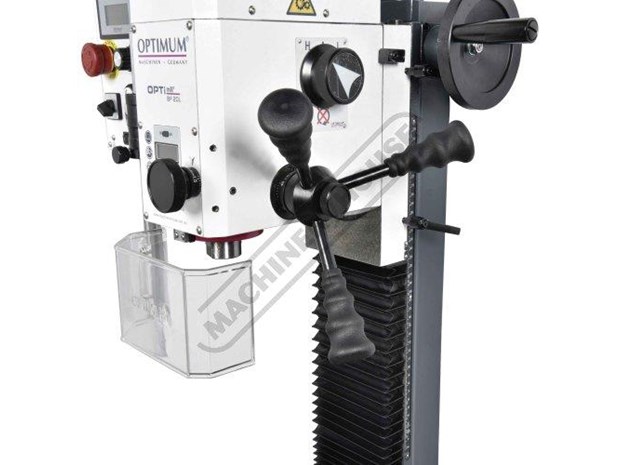

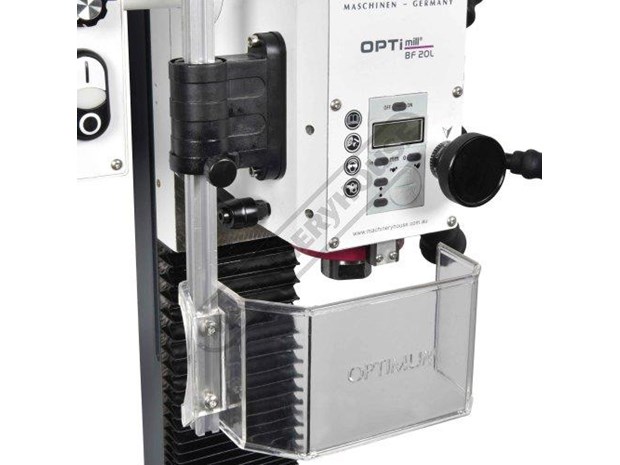

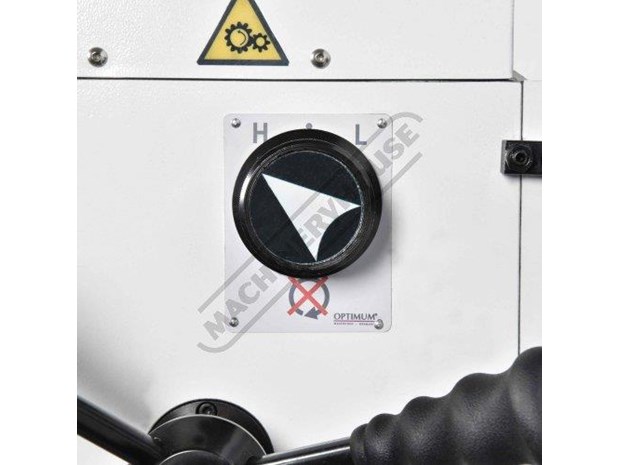

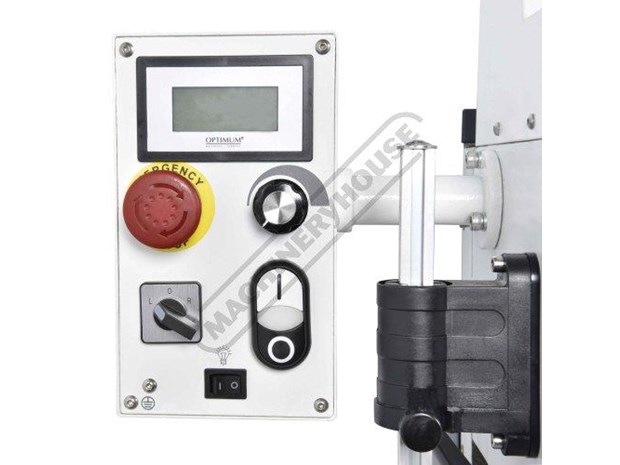

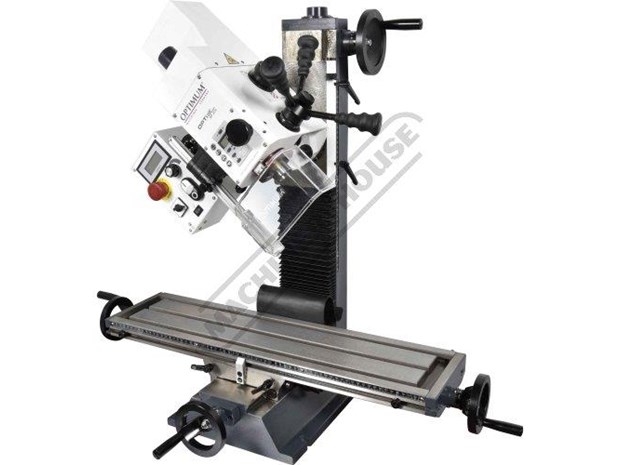

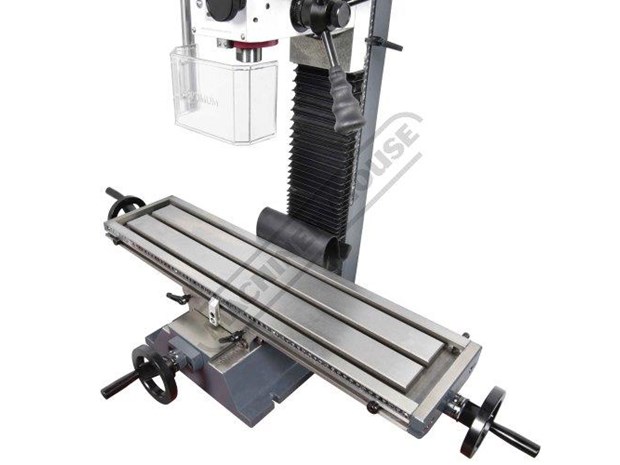

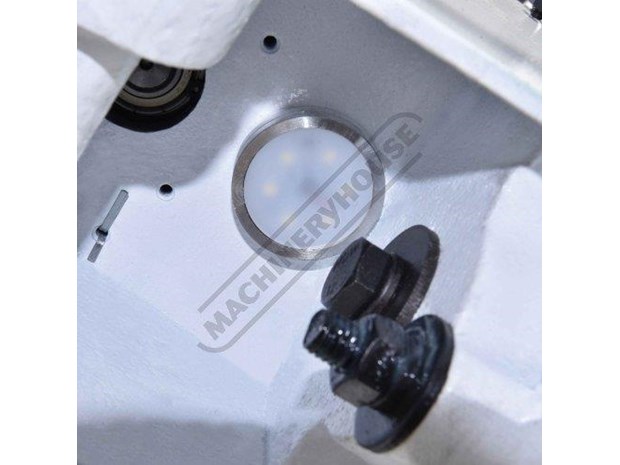

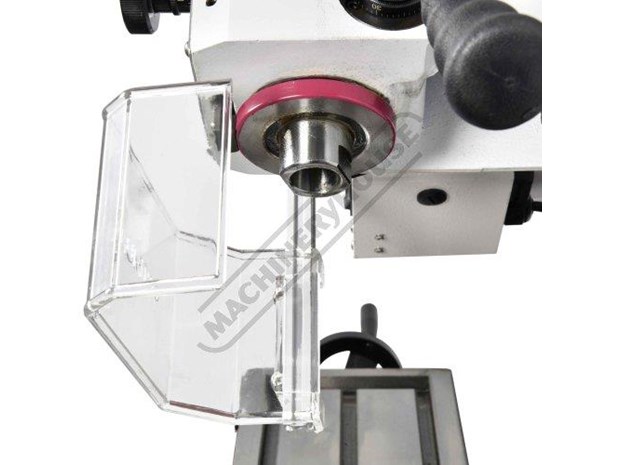

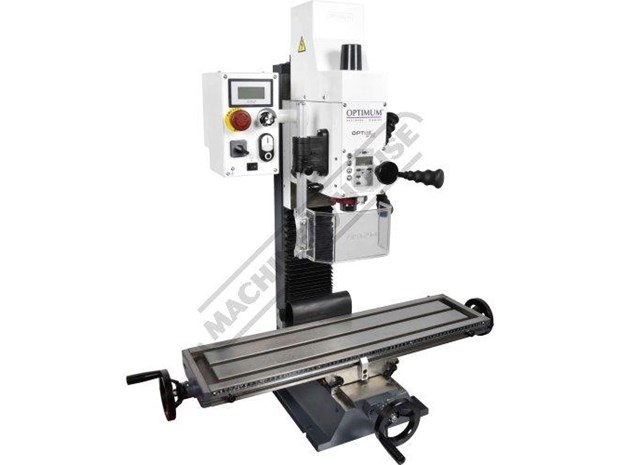

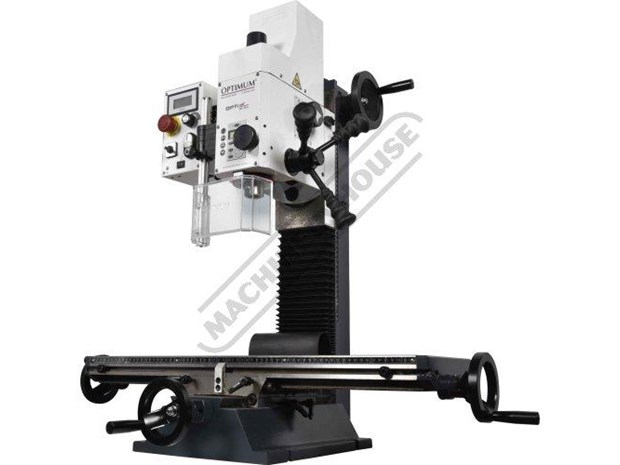

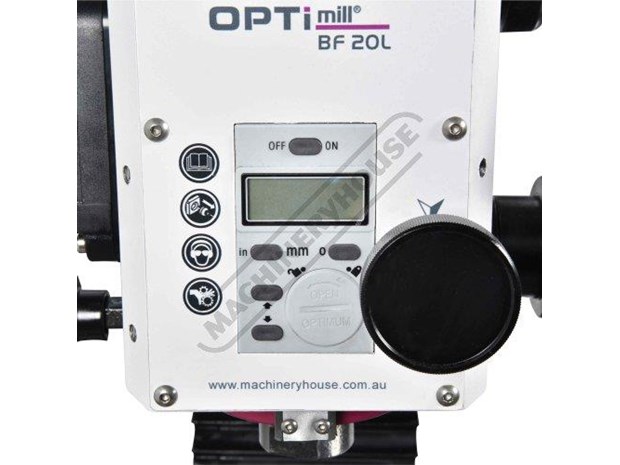

BF-20LV Opti-Mill Drill - Geared & Tilting Head Table Travel: (X) - 480mm (Y) - 175mm (Z) - 280mm El OPTIMUM BF-20LV Opti-Mill Drill - Geared & Tilting Head Table Travel: (X) - 480mm (Y) - 175mm (Z) - 280mm Electronic Variable Speeds & Dovetail Column CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: M650 Excellent quality mill drill machine designed for the model engineer Features: Electronic infinitely variable speed 3MT spindle taper Dovetail vertical Z-Axis Digital readout speed display Work light mounted underneath mill head Digital depth display with zero reset for quill Tilting head to ?? 90?? from vertical 2 speed gearbox (high / low) drive Forward and reverse spindle switch Scale collars for all Axis are adjustable Adjustable dovetail slideways on all 3 axis 700 x 180mm cast iron table with T-slots Adjustable table and drill length stops Rear slideway covers and slide clamps on all axis Metric dial graduations on X & Y-Axis Includes: - 3MT x JT6 drill chuck arbor - Safety cutter guard - Work light - Bracket kit for optional digital readout - 1/2`` x 12tpi whitworth drawbar Specifications: ORDER CODE: M650 MODEL: BF-20LV Digital Readout: Optional Type: Vertical Table Size (mm): 700 x 180 Column Type: Dovetail Spindle Taper - Vertical: 3MT Spindle Taper - Horizontal: ~ Longitudinal Travel (X-Axis) (mm): 480 Cross Travel (Y-Axis) (mm): 175 Vertical Travel (Z-Axis) (mm): 280 Type of Slides: Dovetail Ram Travel (mm): ~ Spindle to Table (mm): 350 Spindle to Base: ~ Spindle Travel / Diameter (mm): 50 / 60 Throat Depth (max.) (mm): 185 Tilting Head (Left ~ Right): ??90?? Tilting Head (Forward ~ Back): Fixed Drilling Capacity (mm): 16 End Milling Capacity (mm): 20 Face Milling Capacity (mm): 63 Power Feed - Quill (mm/rev): ~ Power Feed - Longitudinal (X-Axis) (mm/min): ~ Power Feed - Cross (Y-Axis) (mm/min): ~ Power Feed - Vertical (Z-Axis) (mm/min): ~ Table T-Slot Size (inch / mm): 12 Work Table Load Capacity (kg): 40 Spindle Speeds Vertical (No./ rpm): Variable (90 - 3000) Spindle Speeds Horizontal (No./ rpm): ~ Spindle Speeds - Universal Head: ~ Motor Power - Vertical Spindle (kW / hp): 0.85 / 1.13 Motor Power - Horizontal Spindle (kW / hp): ~ Motor Power - Universal Head: ~ Voltage / Amperage (V / amp): 240 / 10 Nett Weight (kg): 162 To Purchase Online Please Visit The Machineryhouse Website & Search For 'M650' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
