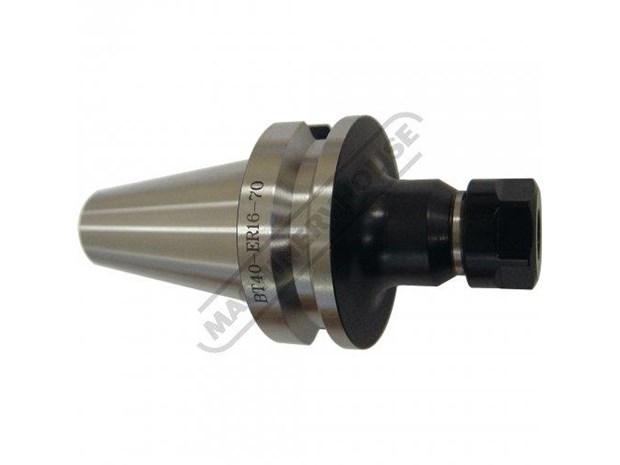

BT40 x ER16-70 Collet Chuck ??0.5-??10mm Range 15,000rpm Speed Rating

TOOLMASTER BT40 x ER16-70 Collet Chuck ??0.5-??10mm Range 15,000rpm Speed Rating
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T203

All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)

Features:
Precision ground
Manufactured to MAS403BT40 standard
M16 Pull Stud thread
70mm extension from the gauge line
Locking spanner not included


Specifications:
ORDER CODE: T203
MODEL: BT40 x ER16-70
Speed Rating (rpm): 15,000
Taper (BT): BT40
Capacity (mm): 0.5 - 10
L (mm): 70
D (mm): 28
Collet Type (ER): ER16
Nett Weight (kg): 1.3


To Purchase Online Please Visit The Machineryhouse Website & Search For 'T203'
