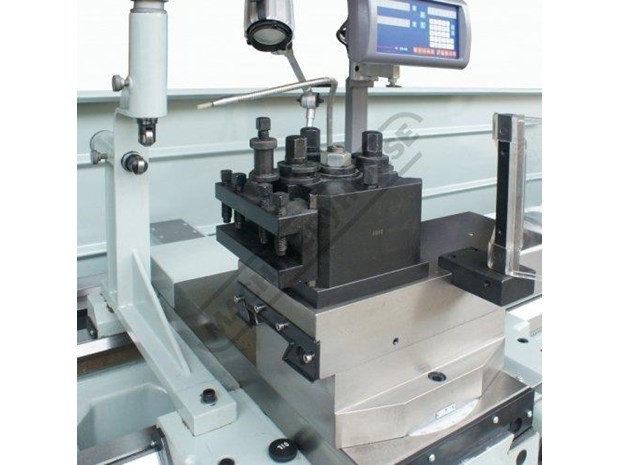

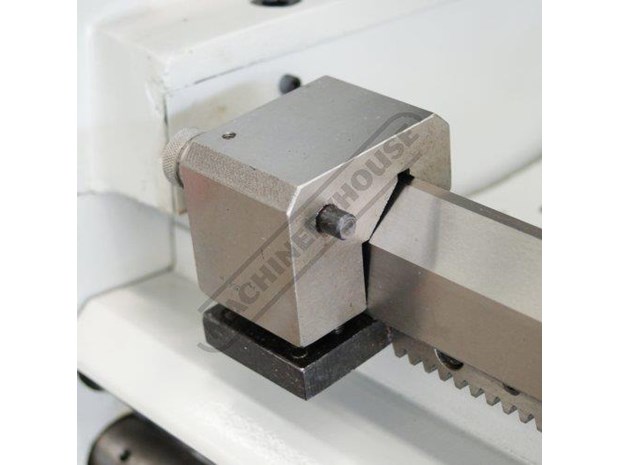

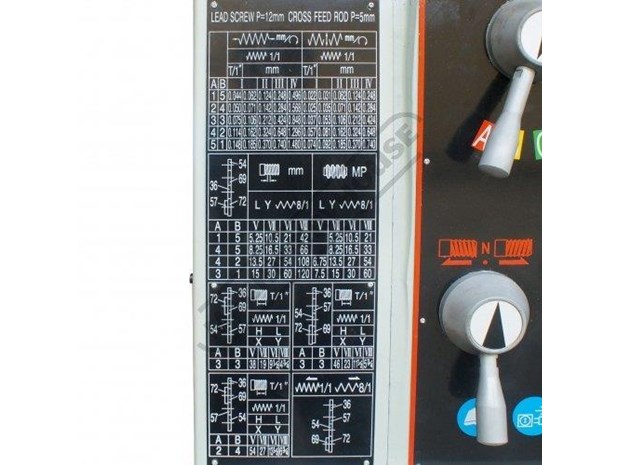

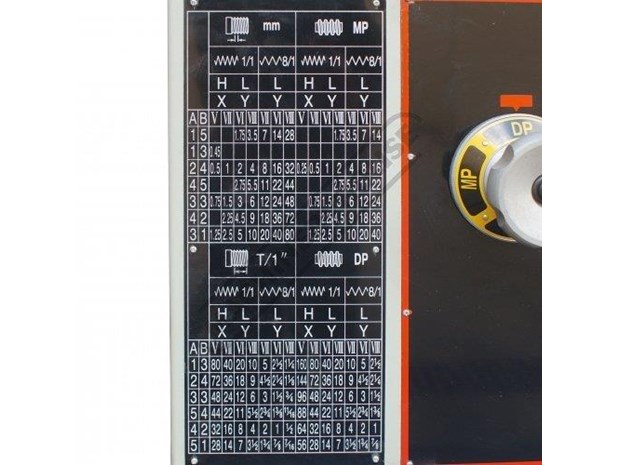

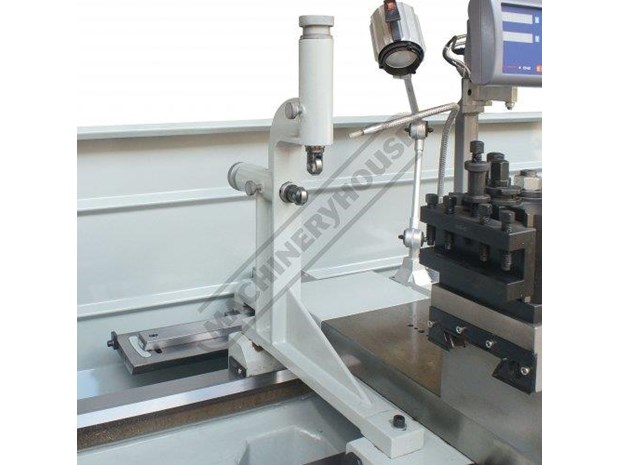

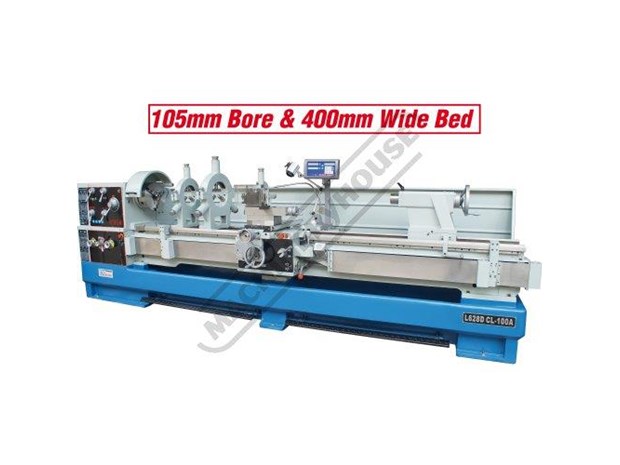

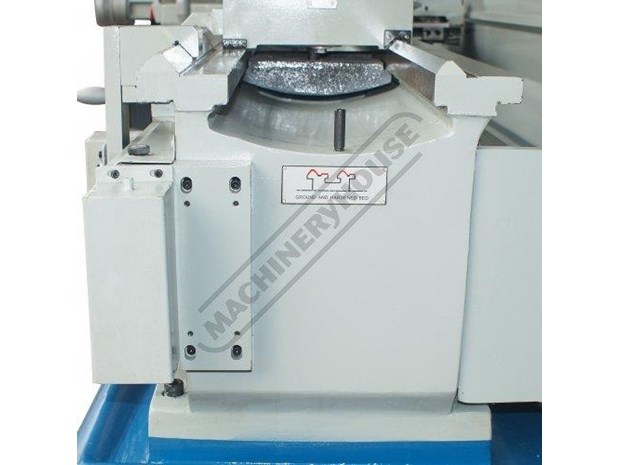

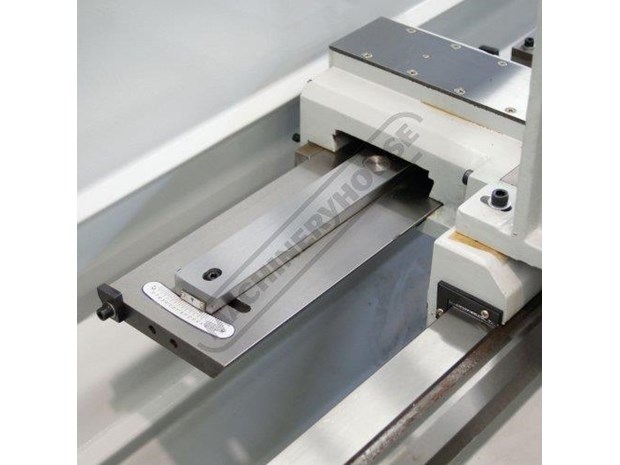

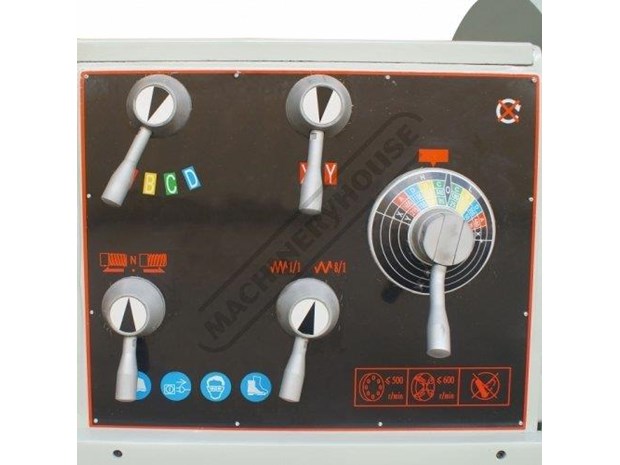

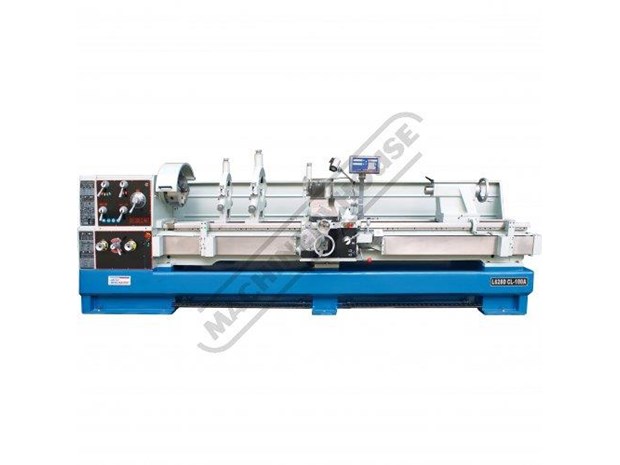

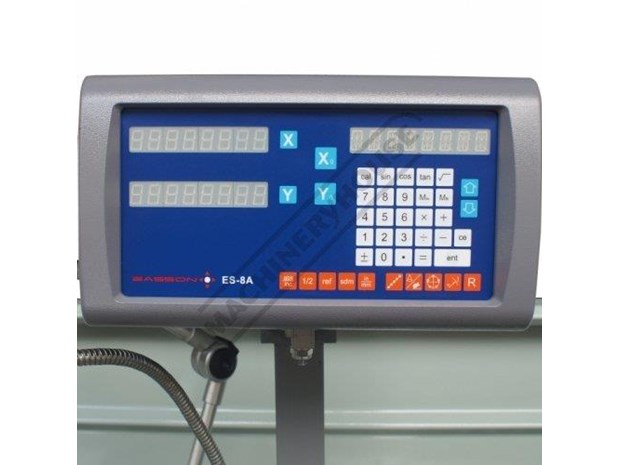

CL-100A Centre Lathe ??660 x 3000mm Turning Capacity - ??105mm Spindle Bore BONUS TOOLKIT: Turning & P HAFCO-METALMASTER CL-100A Centre Lathe ??660 x 3000mm Turning Capacity - ??105mm Spindle Bore BONUS TOOLKIT: Turning & Parting Kit & 5MT Live Centre Also Includes Digital Readout System, Quick Change Toolpost & Taper Turning Attachment CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: L628D Features: 2 Axis digital readout system Taper turning attachment fitted to saddle Triple bearings supporting headstock spindle Spindle clutch to allow operator to switch between forward & reverse without shutting motor down Quick change toolpost with additional holders Adjustable taper roller bearings providing spindle accuracy Precision 'V'-beds & headstock gears are all hardened & ground Multiple discs forward and reversing clutch system Overload protection on drive motor and coolant system Universal enclosed gearbox incorporating metric & imperial thread capabilities Foot operated spindle brake with safety cut out switch X & Z axis rapid traverse selection lever incorporated on the saddle @ 4.5m/min 400mm wide induction hardened heavy duty cast iron bed Removable gap bed allowing work piece to swing up to 900mm Adjustable micro saddle length stop for repetition work Cross slide handle disengages when auto feed is used Saddle hand wheel disengages when auto feed is used Adjustable clutch for auto feeds protects machine from overloading during machining Chuck guard fitted with safety micro switch Micro switch on side access door Powered longitudinal and cross feeds Metric / imperial calibrated feed dials Coolant system with flexible hose enabling flow control & direction Oil sight glass for head stock and gearbox & apron Lubrication pump on saddle oiling slides Low voltage halogen work light D1-8 camlock spindle for quick chuck removal 16 spindle speeds 25-1600rpm Large 105mm spindle bore 7.5kW / 10HP 415V main motor Includes: - BONUS TOOLKIT: Turning & Parting Kit & 5MT Live Centre - 2 Axis digital readout system - Taper turning attachment - Leadscrew covers - 315mm 3-jaw chuck with reverse jaws & 100mm bore - 400mm 4-jaw chuck - Face plate - ??20 - ??190mm fixed steady with roller bearings - ??190 - ??380mm fixed steady with roller bearings - Travelling steady - Dead centres - Thread chasing dial - Foot brake - Coolant system - Work light - Rear splash guard - Spindle reducing bush Specifications: ORDER CODE: L628D MODEL: CL-100A Swing Over Bed (mm): 660 Distance Between Centres (mm): 3000 Spindle Bore (mm): 105 Swing In Gap (mm): 900 Swing Over Cross-slide (mm): 440 Digital Readout System Fitted: Yes Quick Change Toolpost Fitted: Yes Leadscrew Covers Fitted: Yes Taper Turning Attachment: Yes Coolant System: Yes Tool Height To Suit (mm): 25 Centre Height (mm): 330 Spindle Nose Size or Type: D1-8 Camlock Bed Width (mm): 400 Headstock Spindle Taper (MT): 7 Tailstock Taper (MT): 5 Cross Slide Travel (mm): 368 Compound Slide Travel (mm): 230 Leadscrew Type: Metric Metric Cross Feed (X-Axis) (mm/rev): 0.044 - 1.48 Imperial Cross Feed (X-Axis) (inch/rev): ~ Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.022 - 0.74 Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~ Metric Thread Steps & Pitch (No. / mm): 54 (0.45 - 120) Imperial Thread Steps & TPI (No. / TPI): 54 (7/16 - 80) 3 Jaw Chuck Diameter (mm): 315 (100mm bore) 4 Jaw Chuck Diameter (mm): 400 Spindle Steps / Speeds (No. / rpm): 16 (25 - 1600) Motor Power (kW / hp): 7.5 / 10 Voltage / Amperage (V / amp): 415 Nett Weight (kg): 3700 To Purchase Online Please Visit The Machineryhouse Website & Search For 'L628D' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
